PBC317 DALI-2 Multi-mode Coupler
Model：PBC317

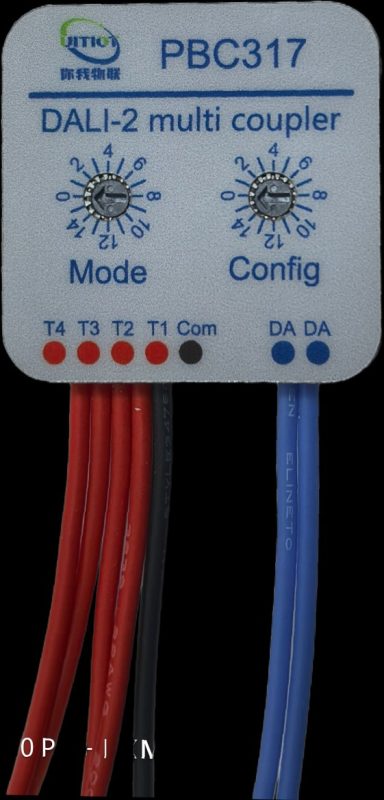

Miniature DALI-2 bus coupler with 4 potential-free self-resetting switch inputs; multiple modes from multi-master input device to single-master application controller (group, scene, tunable-white control); buzzer for identification; bus powered.
- Miniature DALI-2 bus coupler with 4 potential-free self-resetting switch interfaces
- Multiple modes: multi-master input device (IEC 62386-301) or single-master application controller (group controller, scene controller, tunable white — 9 modes)
- Buzzer for device identification
- DALI-2 bus powered, typ. 3mA, max. 6mA
- Small enough for an 86 wall box
- 3-year limited warranty
Technical specifications
| Interfaces | T1–T4: 4 potential-free self-resetting switch inputs |
|---|---|
| Mode 0 (ID) | IEC 62386-301 DALI-2 input device, compatible with all DALI-2 certified application controllers |
| Modes 1–8 | IEC 62386-103 single-master: GC group / GCD dual-switch / GC TuWh tunable white / SC scene / GSC group-scene controllers 0-3, 4-7, 8-11, 12-15 |
| Identification | Buzzer |
| Power | DALI-2 bus powered, typ. 3mA, max. 6mA (70% bus usage) |
| Mounting | 86 wall box |
| Warranty | 3-year limited warranty |
